COATING
COATING

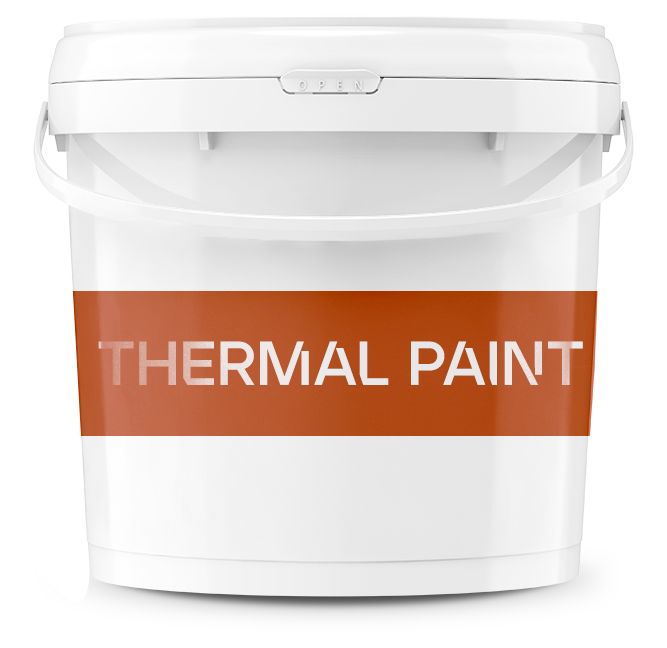

THERMAL PAINT

THERMION STANDARD

APPLICATION AREAS

It is a universal ultra-thin energy-saving coating from our range of ultra-thin thermal insulation materials, suitable for all surfaces with operating temperatures from -60°C to +200°C. Thermal Coating liquid insulation is highly effective in insulating hot and cold water supply pipelines, steam pipelines, air ducts for air conditioning systems and refrigeration systems, various vessels, tanks, refrigerators, trailers, furnaces and other installations.


THERMION STANDARD PREPARATION

Immediately before application to the prepared surface, add a little water if necessary and mix. The amount of water (0 to 50%) depends on the temperature of the base and subsequent use. Consult the nearest representative. Fractionation is normal when stored in the container for a long time. Avoid over-mixing.

Diluted with water

TECHNICAL DETAILS
Film color (basic) : White
Solvent : Pure Water
Coating Appearance : Matte, smooth, homogeneous
Mass fraction of non-volatile substances: More than 70%
Density g cm³: 0.55
Hiding Power, g/m2 (state standard 8784-75) : 176
Thermal Conductivity W/m°C: 0.0012
Heat Dissipation W/m°C3.9
Thermal Resistance m2*CW(at 1mm) : 1.0
Coefficient of Vapor Permeability Mg/m hPA: 0.017
Coating Adhesion (state standard 15140-78): 1 score
Flammability Class (except NG modification): G1
